Features

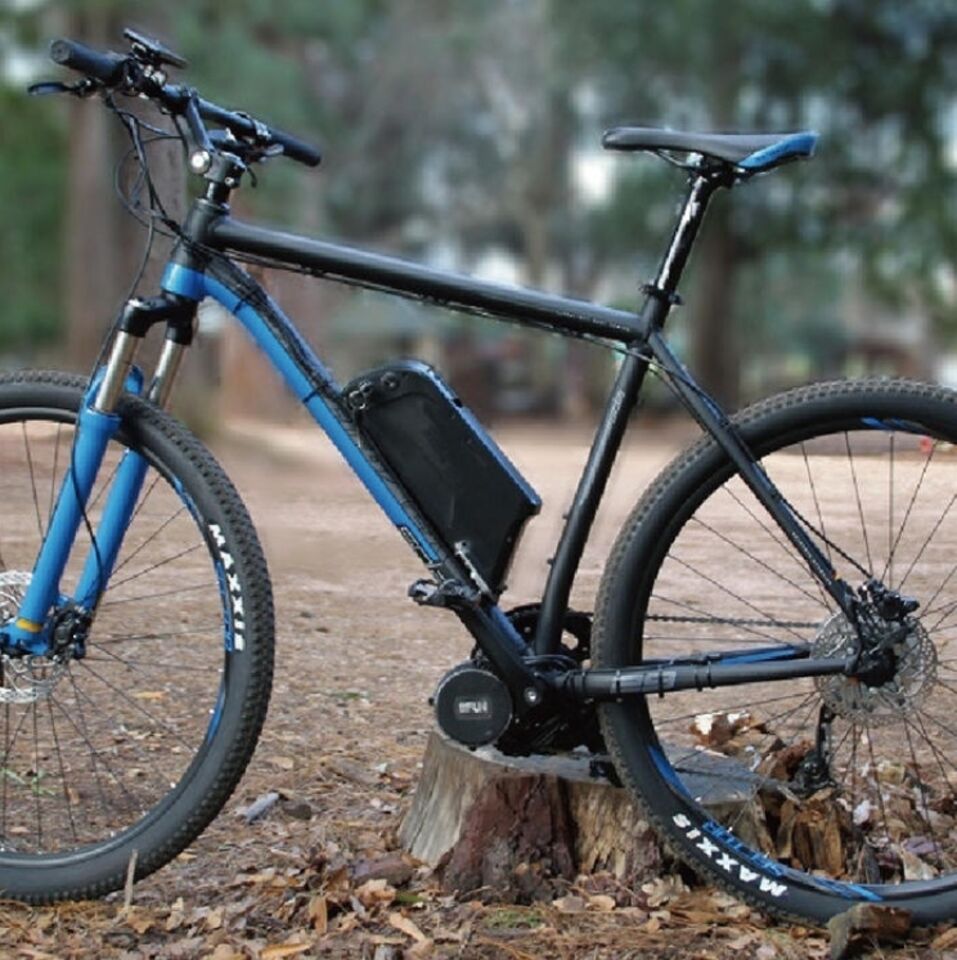

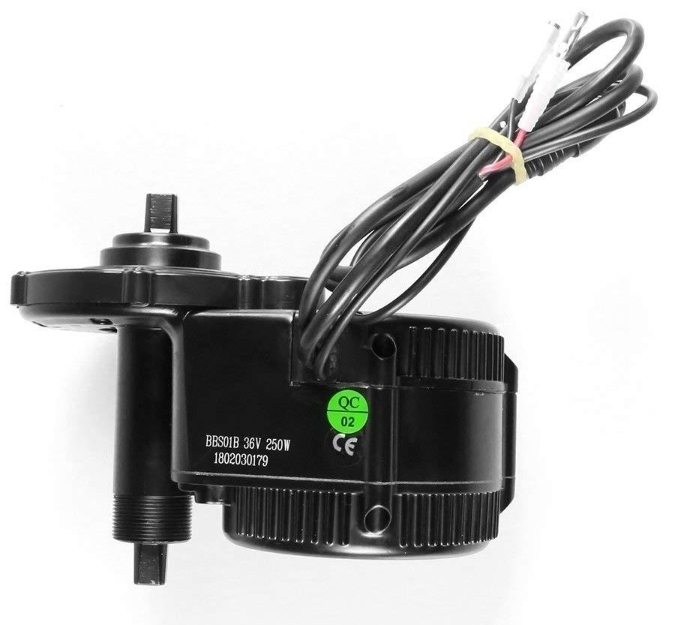

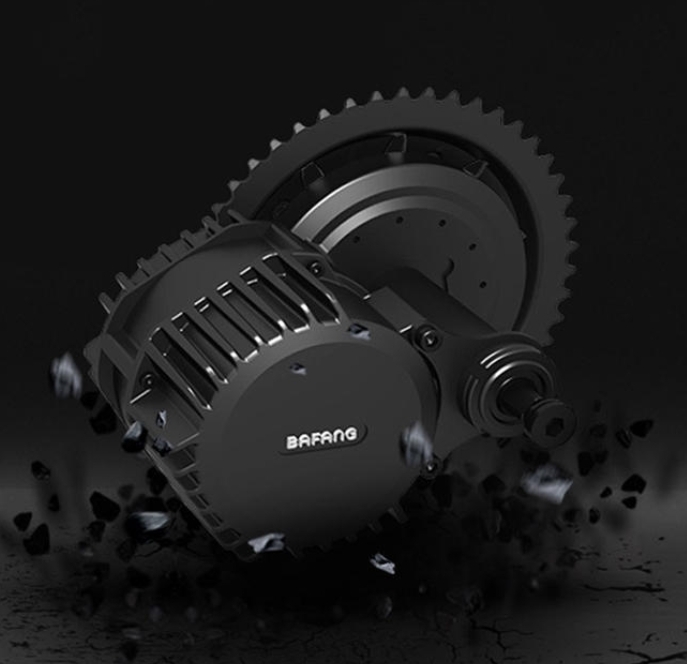

Latest model of BBS01B 36V 250W motor released by Bafang (model reference 'MM G340.250'), suitable for converting over 90% of bicycles already on NZ roads into an E-bike. The motor fits directly to the bottom bracket powering from the cranks, so the majority of the bicycle remains unchanged.
These motors have several new features compared to the previous BBS01 motors, such as revised controller design with improved gasket, additional connections for direct gear sensor input and a 6V power output for lighting.
The supplied display is the Das-Kit L6
Select from up to 5 gradually increasing levels of assistance depending on the terrain/winds.
Bike rides as normal when power is switched off without the drag, weight or resistance that can be associated with hub motors.
Considered superior to hub drive systems, especially for hill climbing torque and efficiency, the BBS01B are arguably the best way to maximise the 250 Watt power limit
Features:
Intelligent DC motor system. Effective torque, continuation and power.
Light and take up little space. Easy to assemble.
Suits for mountain bike, folding bike, touring bike. Applicable to 90% bikes(19-26inch).
Built-in controller. 5 Variable speed gear.
With Vehicle speed sensors, power brakes, trigger shifters.
Specifications
Specification:
| Brand | Bafang |
| Model | BBS01B |
| Item | Electric Bicycle Modification Kits |
| Voltage | 36V |
| Power | 250W |
| No-load Speed(Rpm) | 83/87 |
| On-load Speed(Rpm) | 78/83 |
| Max Torque(N.m) | 80 |
| Motor Net Weight(kg) | 3.98 |
| Total Net Weight(kg) | 5.37 |
| Total Gloss Weight(kg) | 6.12 |
| Pole Number(2P) | 16 |
| Position | Built-in |
| Wheel Diamater(Inch) | Optional |
| Rated Voltage | 36/48 |
| Bottom Bracket Length | 68 mm |
| Suitable Bike Size | 19- 26 Inch |
| Structure | Gear Drive |
| Waterproof Grade | IP 65 |
| Efficiency | ≥ 80% |
| Working Temperature | -20~45°C |
| dB | Less than 55 |
| Power Sensor | Speed Sensor |
| Magnet Number(Pulse/Circle) | 1 |
| Certification | CE/EN 14764/ROHS |
| Corrosion-proof grade(h) | 96 |
| Gear reduction ratio | 1:21.9 |
| Axis Standard | JIS |
| Color | Black |
Contents

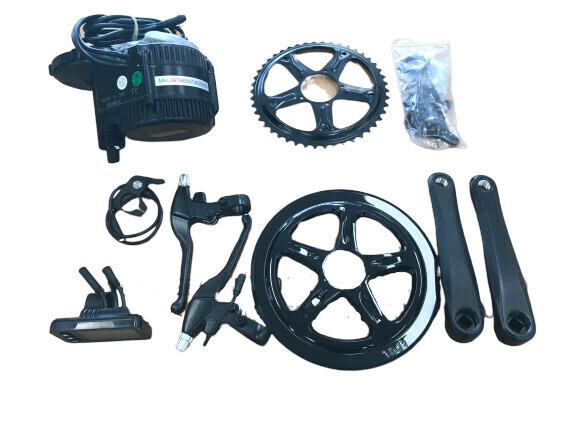

Conversion Kit Includes:

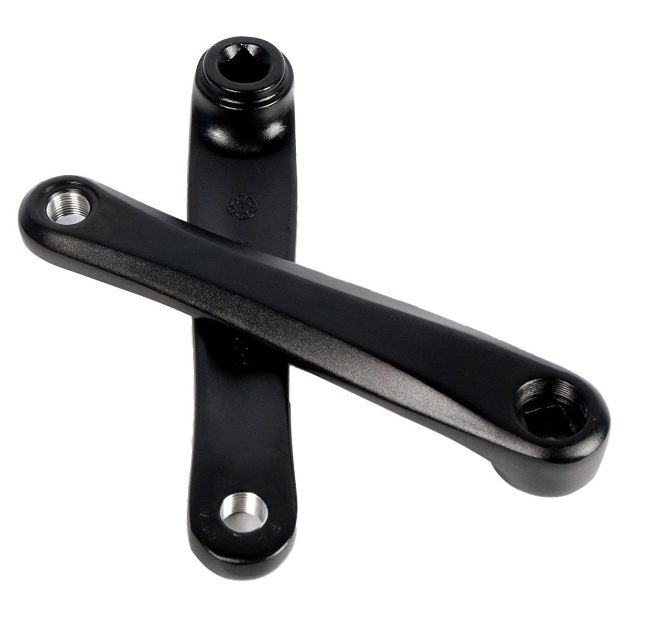

- Crank

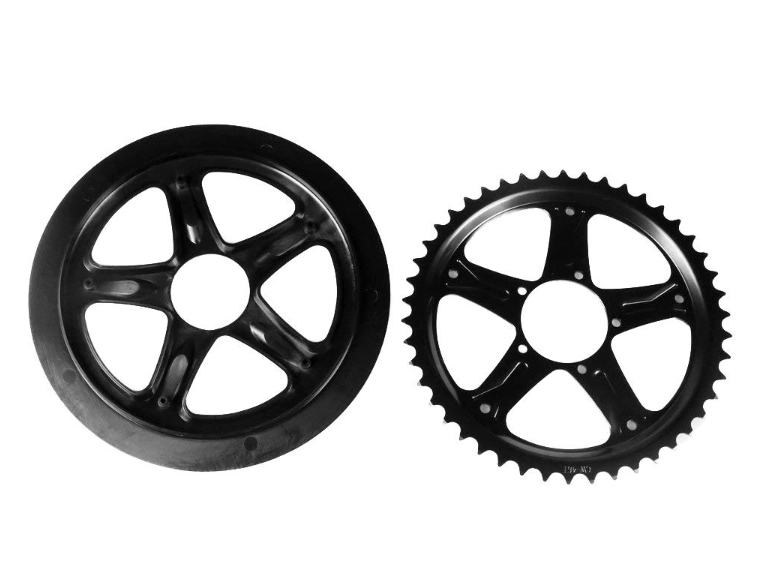

- Chain Wheel
- Speed Sensor
- Power Brakes
- Trigger Shifter
- 250w 36v Bafang Motor

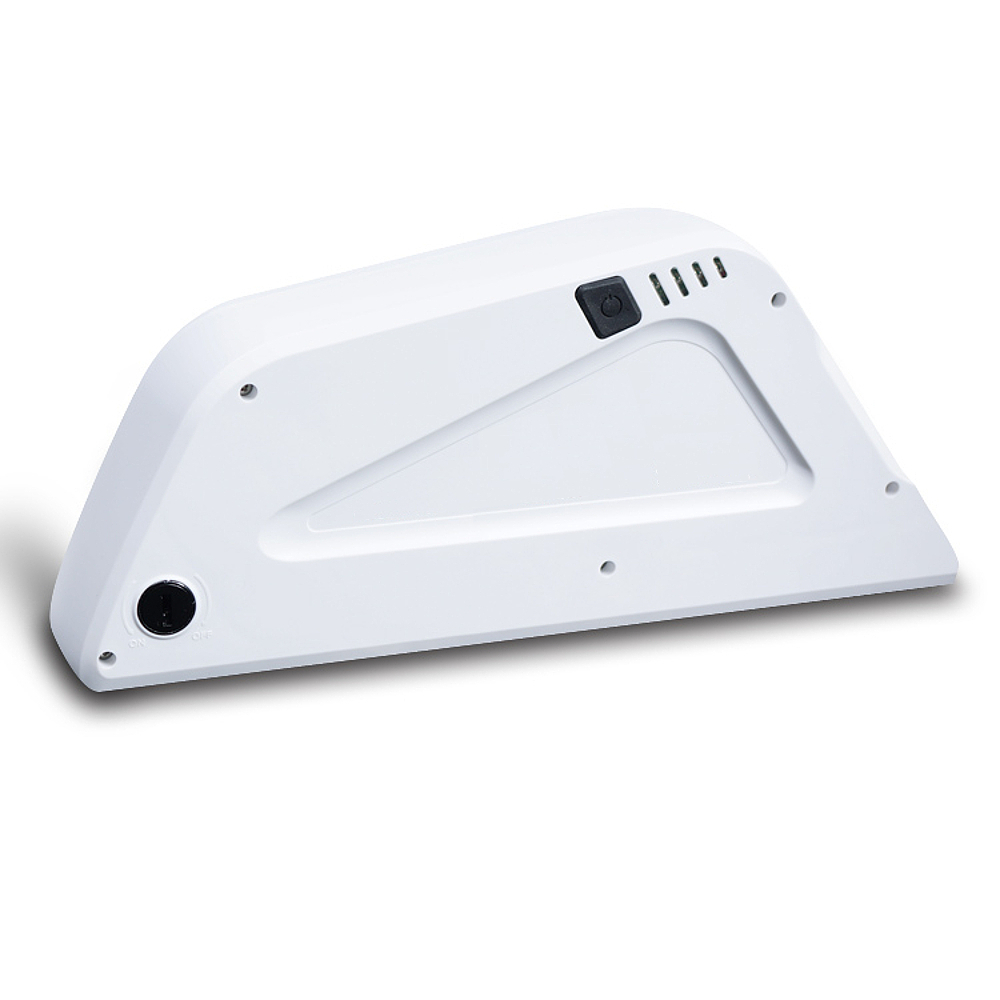

- DEHAWK Battery 36V 13Ah 468Wh High Power Zellen
- Battery Base Bracket DAS-KIT D5
- Charger Kit DC362AU
- Das-Kit L6 Display
